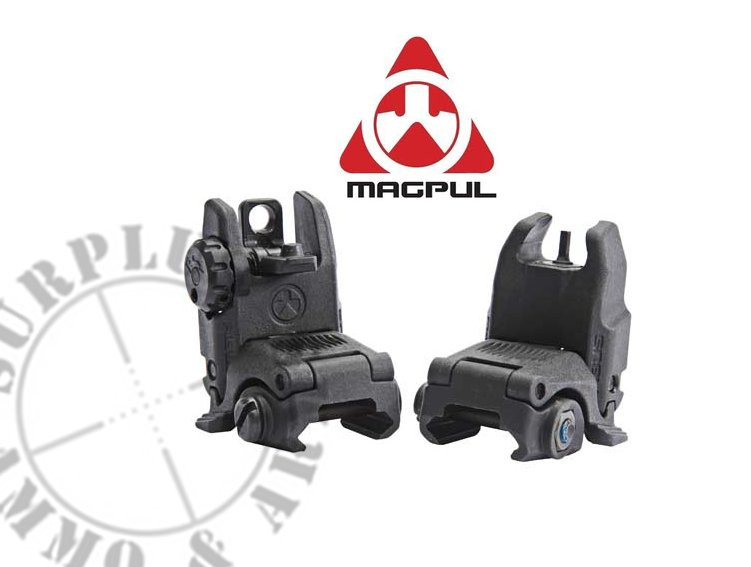

Magpul M.B.U.S. Generation II Front & Rear Sight Set MAG247 & MAG248

The new MBUS (Magpul Back-Up Sight) GEN 2 are a low-cost, color injection molded, folding back-up sight set. Black, Flat Dark Earth, Olive Drab Green, Foliage Green.

Front Sight:

The MBUS Front Sight is adjustable for elevation and fits most 1913 Picatinny-railed hand guards, but is specifically tailored to the AR15/M16 platform. Made in U.S.A.

Features

• Impact resistant polymer construction provides light weight and resists operational abuse
• Spring-loaded flip up sight easily activated from either side or by pressing the top
• Detent and spring pressure keeps sight erect but allows for unobstructed folding under impact, etc.
• Clamps to most any MIL-STD-1913 Picatinny/STANAG 4694 railed hand guard and provides the same height-over-bore as standard A2 irons
• Protective wings shield the spring-locking A2 front sight post

Specifications

• MBUS – Front Gen 2
  • Weight, w/ hardware: 1.2 oz.
  • Height above rail, stowed: ~0.51 in.
  • Length, stowed: 2.6 in.
  • Length, deployed: 1.5 in.

NEW Features for GEN 2

• Reduced size for greater optics compatibility
• Spring-locking front sight post holds consistent elevation

NOTE: Cannot be mounted to a railed gas block due to excess heat issues. Front MBUS must be mounted to a railed fore end on the same plane as the receiver rail. Because of this the sight is also not compatible with MOE Hand Guards.

Rear Sight:

The dual aperture MBUS Rear Sight is adjustable for windage and fits most 1913 Picatinny rail equipped weapons, but is specifically tailored to the AR15/M16 platform. Made in U.S.A.

Features

• Impact resistant polymer construction provides light weight and resists operational abuse
• Spring-loaded flip up sight easily activated from either side or by pressing the top
• Detent and spring pressure keeps sight erect but allows for unobstructed folding under impact, etc.
• Clamps to MIL-STD-1913 Picatinny/STANAG 4694 receiver rail and provides the same height-over-bore as standard A2 irons
• Protective wings shield the dual flip apertures
• Sight can still be folded with either large or small aperture in position
• Detent knob easily and positively adjusts windage

Specifications

• MBUS – Rear Gen 2
  • Weight, w/ hardware: 1.3 oz.
  • Height above rail, stowed: ~0.51 in.
  • Length, stowed: 2.6 in.
  • Length, deployed: 1.5 in.

NEW Features for GEN 2

• Reduced size for greater optics compatibility (folds to a profile of only approximately a half-inch)
• Both small and large apertures are on the same plane
